Efficient Products

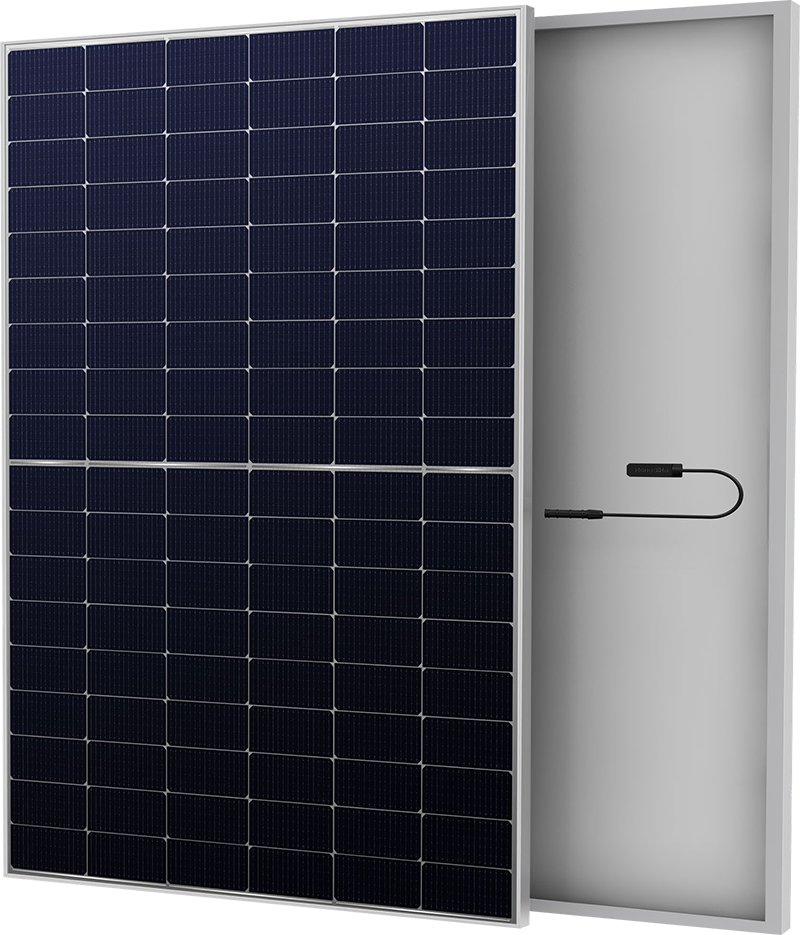

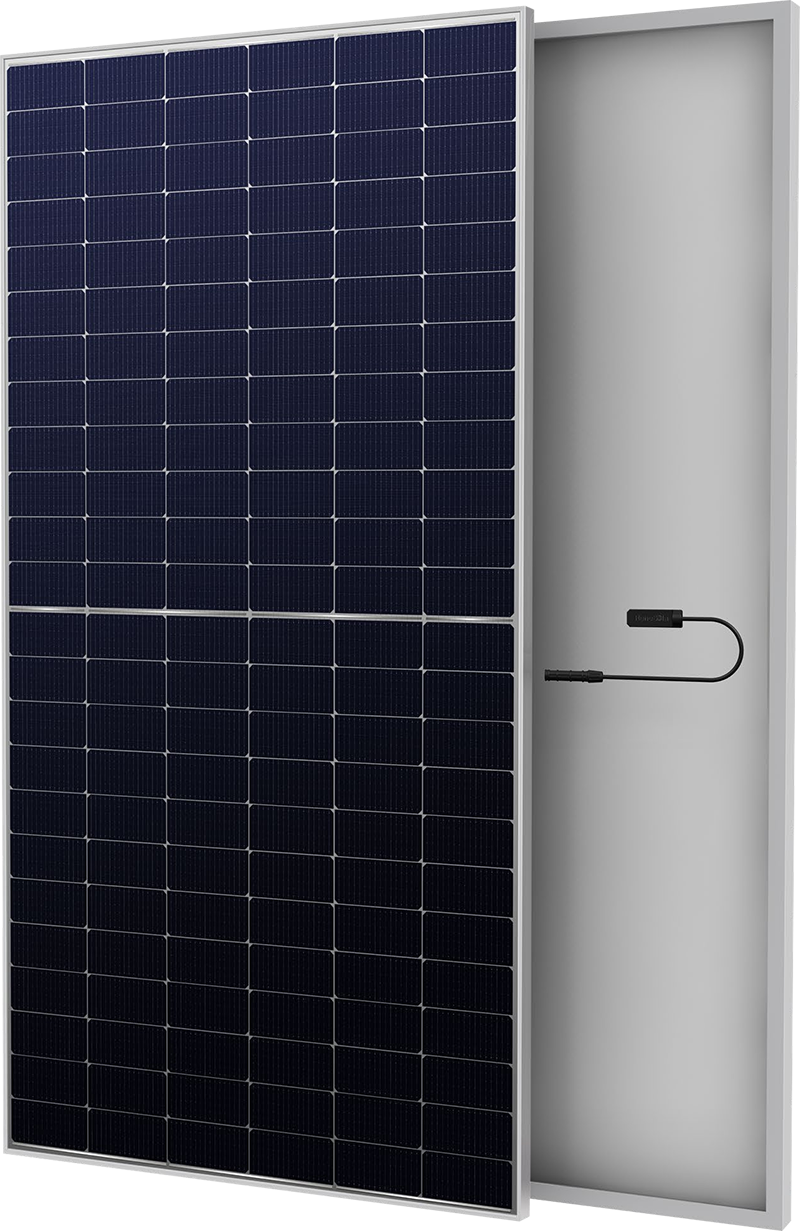

SGM420~440S-182/108-N
MONO-FACIAL MODULE
● Dimension: 1722x1134x30 mm
● Front side power range: 420-440 Wp
● Solar cell size: 182 mm
● Weight: 22 kg
● Module efficiency up to 22.53 %
● Lower LCOE & system cost

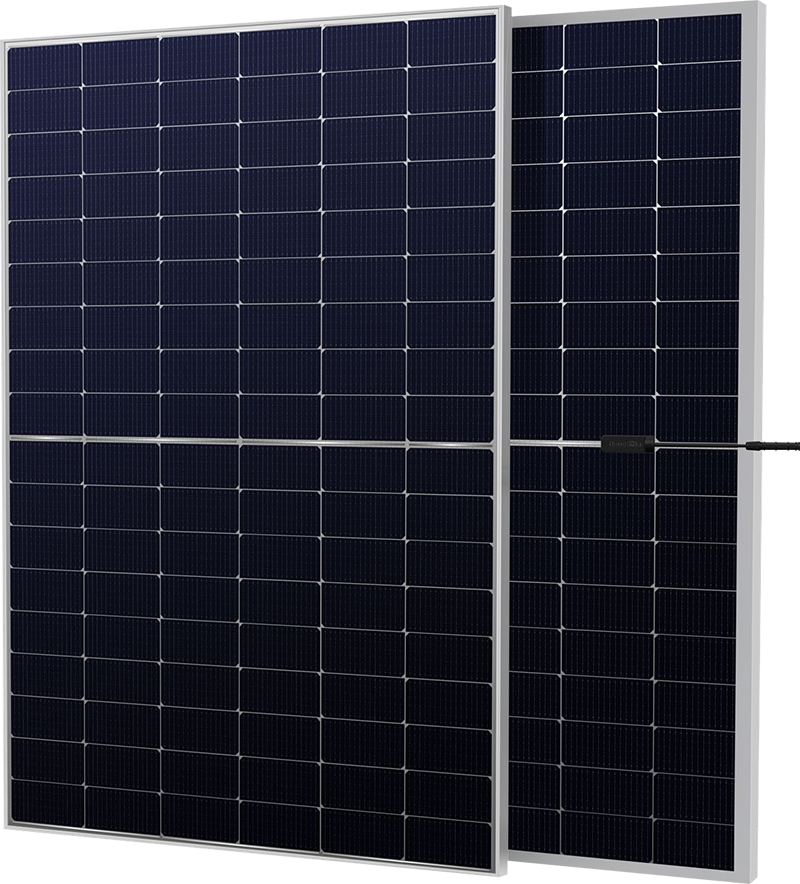

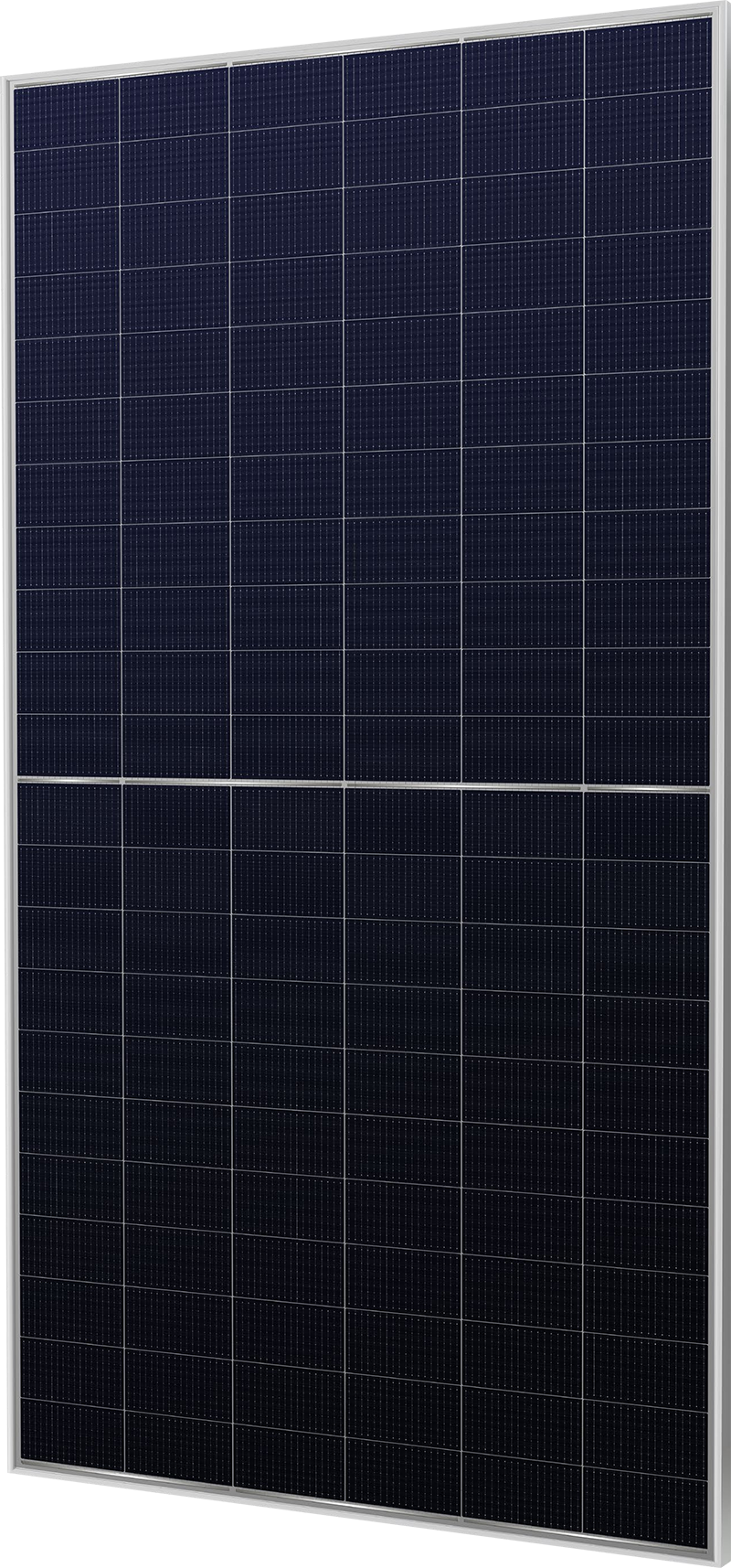

SGM430~450S-182/144-NBG
BIFACIAL MODULE WITH DUAL GLASS
● Dimension: 1722x1134x30 mm
● Front side power range: 430-450 Wp
● Solar cell size: 182 mm
● Weight: 24.5 kg
● Module efficiency up to 23.04 %
● Lower LCOE & system cost

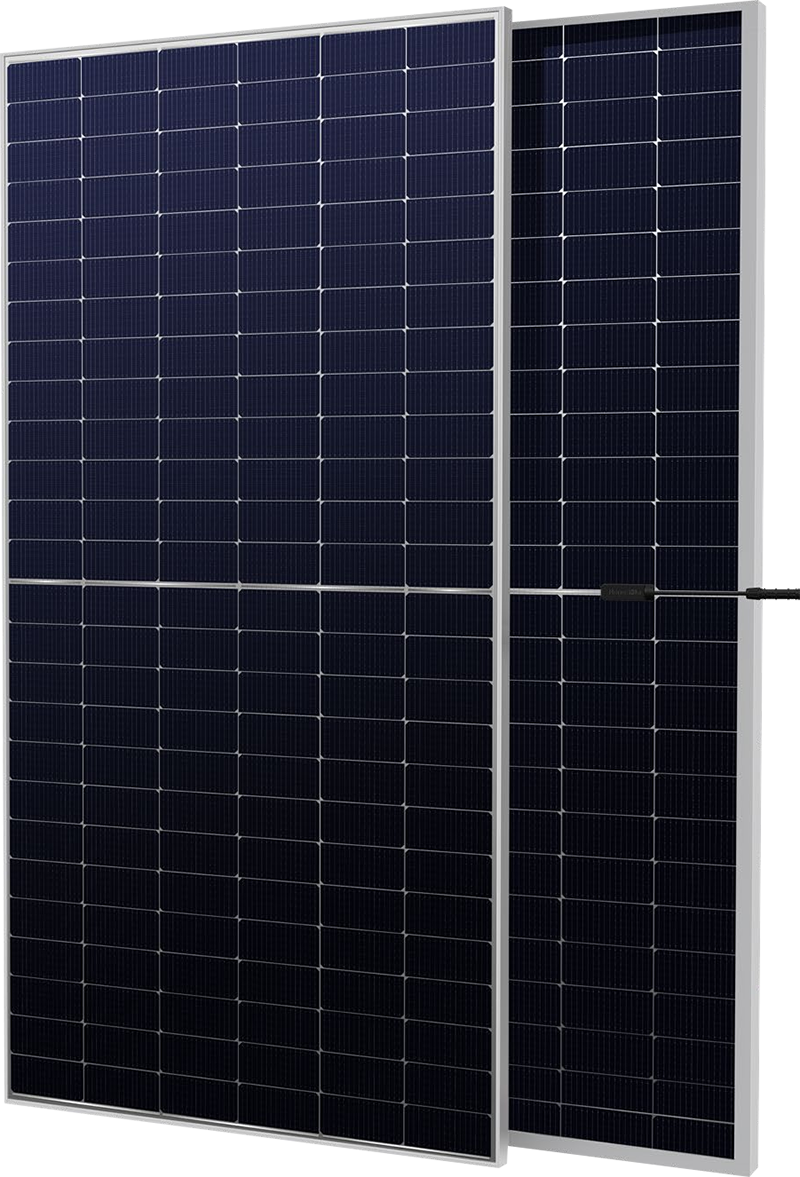

SGM570~595S-182/144-NBG
BIFACIAL MODULE WITH DUAL GLASS
● Dimension: 2278x1134x30 mm
● Front side power range:570-595 Wp
● Solar cell size:182 mm
● Weight: 31.7kg
● Module efficiency up to 23.03 %
● Lower LCOE & system cost

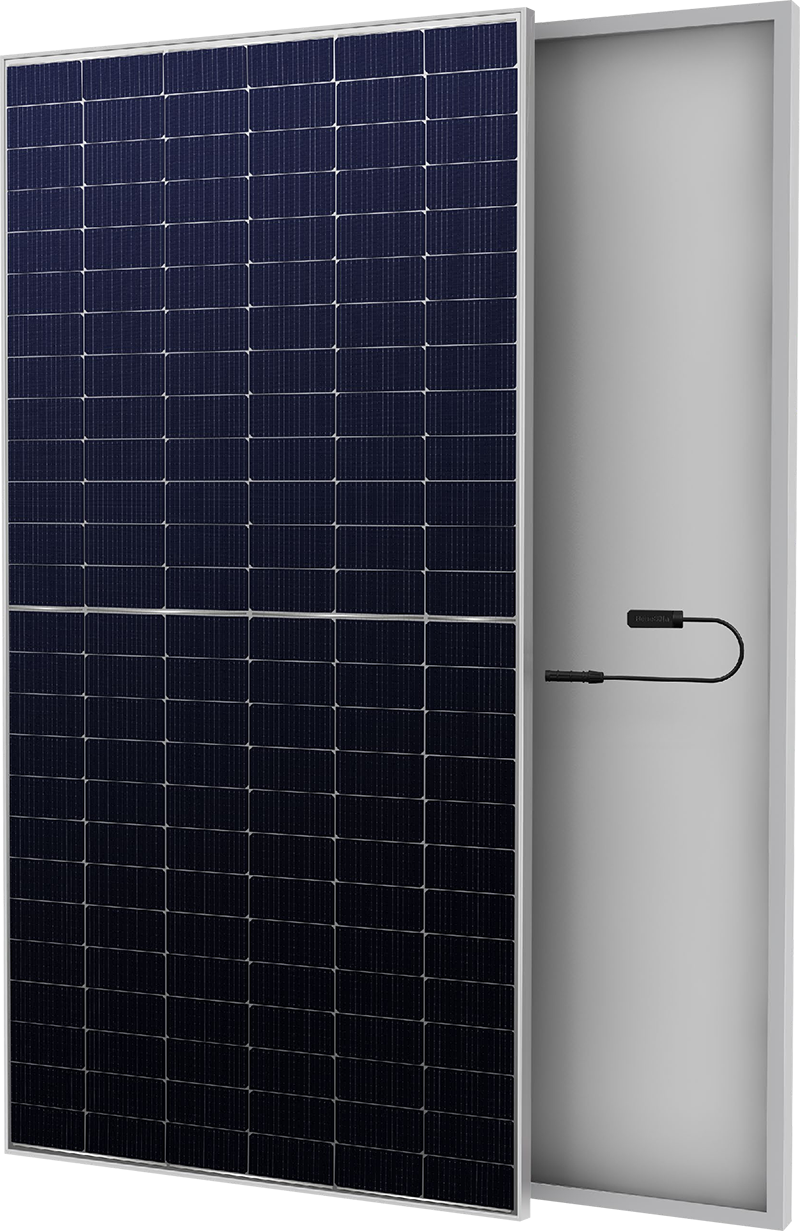

SGM570~595S-182/144 -N
MONO-FACIAL MODULE
● Dimension: 2278x1134x30 mm
● Front side power range: 570-595 Wp
● Solar cell size: 182 mm
● Weight:27 kg
● Module efficiency up to 23.03 %
● Lower LCOE & system cost
SGM615~635S-182/156-N
MONO-FACIAL MODULE
● Dimension: 2465x1134x30 mm
● Front side power range: 615-635 Wp
● Solar cell size: 182 mm
● Weight: 30 kg
● Module efficiency up to 22.72 %
● Lower LCOE & system cost

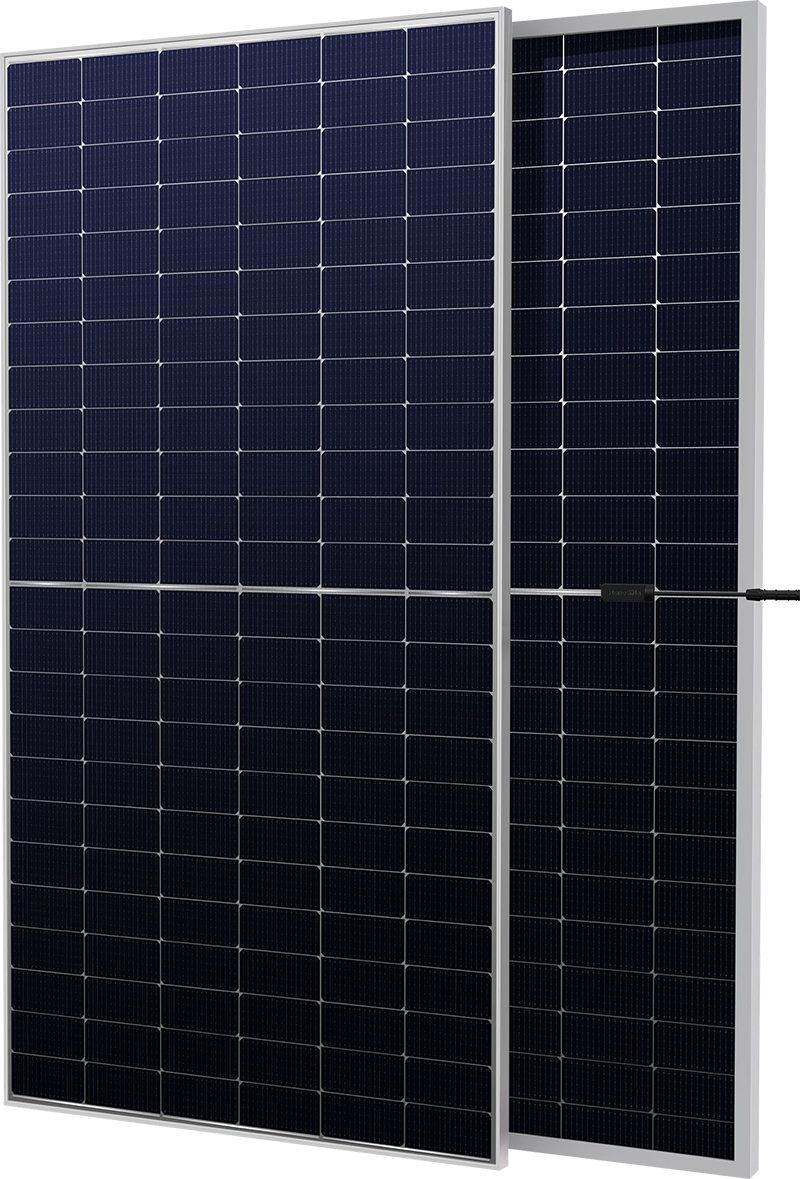

SGM615~635S-182/156-NBG
BIFACIAL MODULE WITH DUAL GLASS
● Dimension: 2465x1134x30 mm
● Front side power range: 615-635 Wp
● Solar cell size: 182 mm
● Weight: 35 kg
● Module efficiency up to 22.72 %
● Lower LCOE & system cost
SGM685~705S-210/132-N
MONO-FACIAL MODULE
● Dimension: 2384x1303x33 mm
● Front side power range: 685-705 W
● Solar cell size: 210 mm
● Weight: 33.5 kg
● Module efficiency up to 22.7%
● Lower LCOE & system cost

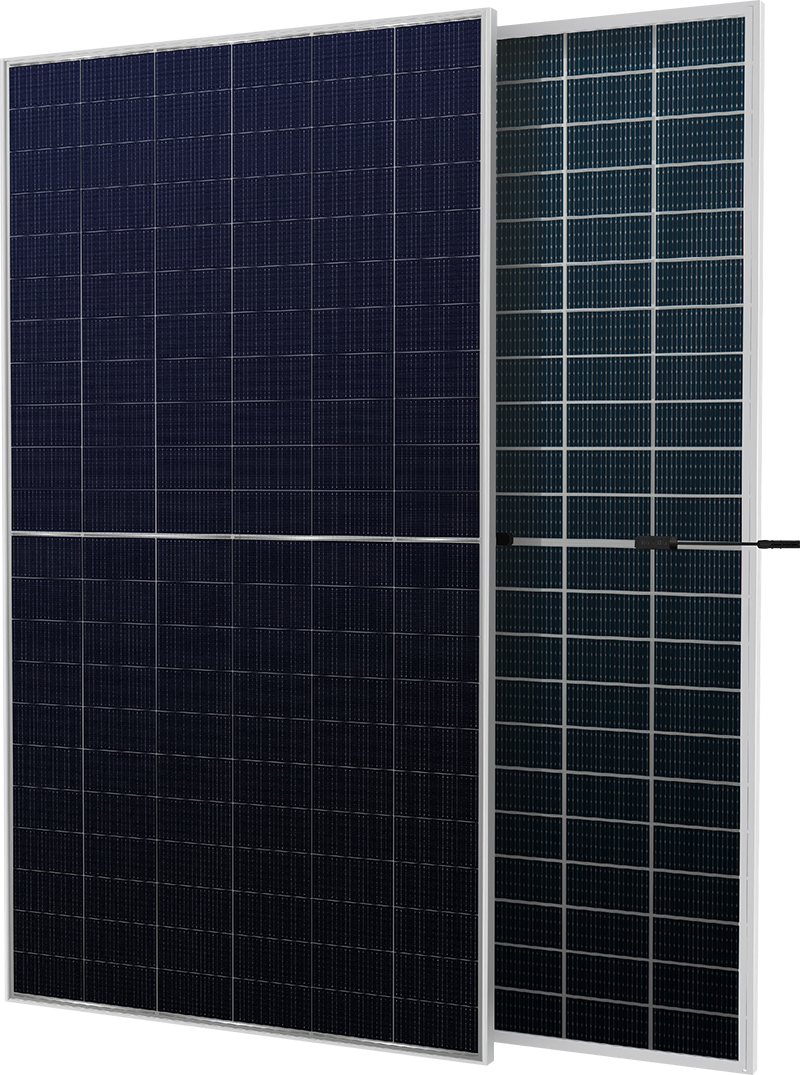

SGM685~710S-210/132-NBG
BIFACIAL MODULE WITH DUAL GLASS
● Dimension: 2384x1303x33 mm
● Front side power range: 685-710 Wp
● Solar cell size: 210 mm
● Weight: 38.7 kg
● Module efficiency up to 22.86 %
● Lower LCOE & system cost

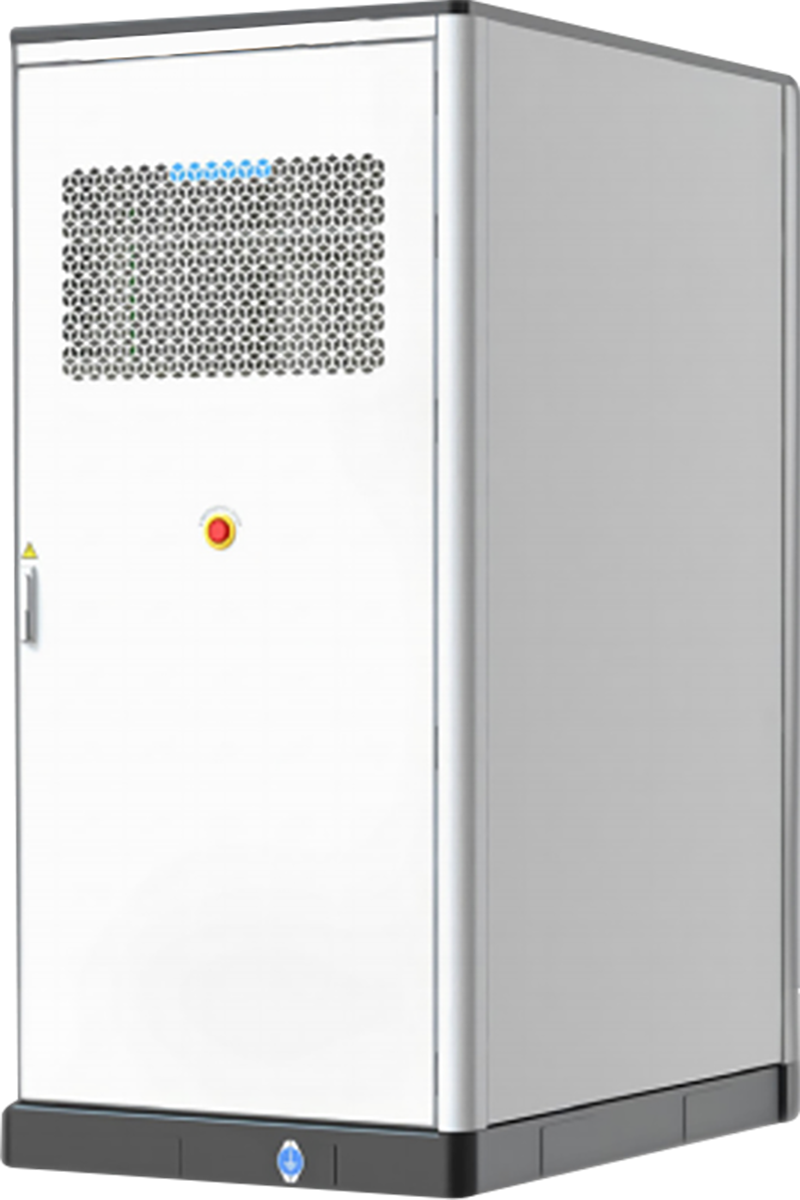

SGM100kW/215kWh-LFP
LiFePO3 ENERGY STORAGE PACK
● Battery type: LiFePO4
● Dimension: 1150 mm * 2450 mm * 1610 mm
● Weight:
● System configuration: 240 pcs batteries in string.
● Capacity: 215kWh
● AC output power: 100kW
● Communication: Modbus TCP

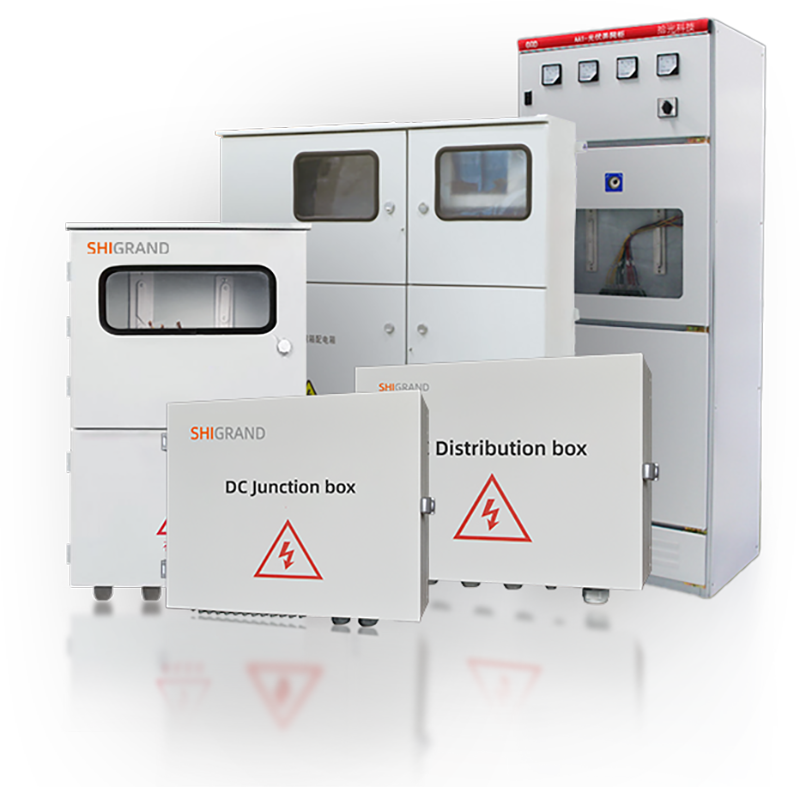

Customized Solar Plant DC/AC Control Units
● Material: Powder sprayed steel cabinet or stainless-steel cabinet (customized)
● Electric parts: optimized design of the priority parts with local certifications. (customized)
● Safety standard: according to local regulations.
● Execution: customer provides the drawing of the equipments.
